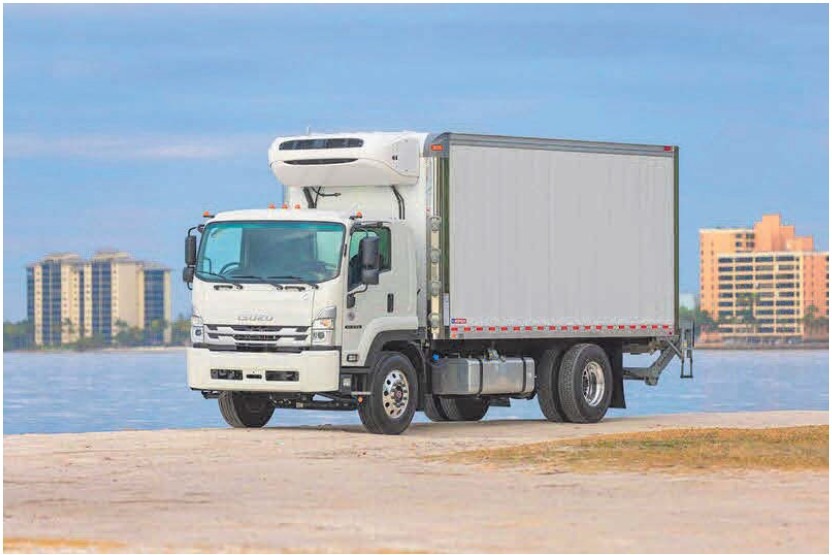

Isuzu FVR 24’ Refrigerated Van
Fully Spec’d Commercial Reefer Straight Truck

CHASSIS & POWERTRAIN
Chassis: Isuzu FVR
Engine: Cummins B6.7 diesel
Turbocharged, intercooled
Horsepower: ~260 HP
Torque: ~660–720 lb-ft
Transmission: Allison automatic
Drivetrain: 4x2
Wheelbase: 212 in
GVWR: 33,000 lb
Front Axle Rating: ~12,000 lb
Rear Axle Rating: ~21,000 lb
Fuel Tank: 100-gallon aluminum
Suspension: Air ride
Brakes: Full air brakes
Exhaust: Horizontal exhaust
OVERALL VEHICLE DIMENSIONS
Overall Length: ~35–36 ft
Overall Width: 102 in
Overall Height: ~12.5–13 ft (body + reefer dependent)

REFRIGERATED BOX BODY
Manufacturer: Intercontinental Truck Body Ltd. (ITB)
Type: 24’ Patented Snap-Lock Panel Freight Van
Exterior Box Dimensions
Length: 24 ft
Exterior Width: 8 ft 6 in
Extra Height: +18 in over standard
Front: Fiberglass nose cone wind deflector
Interior Box Dimensions (Approx.)
Interior Length: 24 ft
Interior Width: ~96 in
Interior Height: ~102 in
Interior Volume: ~1,900 cu ft

INSULATION & INTERIOR FINISHING
Walls & Ceiling:
3/8” plywood lining
2” closed-cell urethane spray foam

Floor:
2” closed-cell spray foam under floor
1-1/8” hardwood flooring
Aluminum 1/8” checkerplate floor

Finish:
White fiberglass lining on walls
Trimmed around roll-up door tracks

Scuff Protection:
12” high 14-gauge stainless steel scuff liners (front and sides)

Cargo Control:
2 rows of E-track on side walls
Mounted at 26.5” and 60” heights

DOORS & ACCESS
Rear Door:
Whiting TempGuard 1.5” insulated roll-up door
Inside release

Hardware:
Heavy-duty rear posts and header with drainage trough
Two rear grab handles
ROOF & STRUCTURE
One-piece aluminum roof
1.5” crowned roof bows at 24” on center
Extruded aluminum medium-radius front corners

LIFTGATE
Brand: Maxon BMR-44
Capacity: 4,400 lb
Platform Size: 84” x 85”
Split Platform: 42” x 42”
Operation: Power on demand
Hydraulics: Dual pump with cycle counter
Power: Truck charge line + auxiliary batteries
Finish: Galvanized

Extras:
3-ft pump extension kit
Hanger frame
Battery box

ELECTRICAL & POWER
Dual batteries
Blue Sea Battery Link ACR
Charge line to truck alternator
Factory backup camera integrated
Rear dome lighting

LED exterior lighting package:
LED clearance lights
LED stop/tail lights
LED backup lights
Motion-sensor cargo lights

PAINT & EXTERIOR FINISH
Paint Code: Isuzu 729 White
Paint System: PPG Delfleet Essential premium single-stage
Undercoating: Yes
Rubber ITB logo mudflaps with anti-sail brackets

WEIGHTS (APPROXIMATE)
Estimated Curb Weight (as spec’d): 18,500–20,000 lb
Estimated Payload Capacity: 13,000–14,500 lb

KEY SELLING POINTS
Heavy-duty Isuzu FVR platform
Fully insulated true freezer-grade body
4,400 lb liftgate
Spray-foam insulated floor, walls, and ceiling
E-track cargo control system
Fleet-spec electrical and lighting
Built for long-term commercial use, not light duty
